I replaced both links with the parts from the new door link kit which contains a new set of pulleys and two links that have a red strand (see part link image) woven into the rope to indicate the new vs the old style link. Once the first link breaks, the customer will notice the door uncomfortably heavy when opened much like this customer did. The most common failure of the door link is the end connecting to the door spring breaks and allows the rope to pull loose, or the link just breaks at one of the ends due to the constant tension and bending when run through the pulley system. The spring is then connected to the rear of the dishwasher frame and remains in place with just a small amount of tension applied. This link will wrap around a set of pulleys (one of which is stationary) near the front of the frame allowing the rotational movement of the door hinge to translate into a horizontal pull on the spring. The link is made up of a small rope with plastic connectors on either end to connect to the door hinge and spring. The doors on the Kitchenaid line of dishwasher use a spring and link assembly to counterbalance the weight of the doors, and because the internal panels of these doors are stainless steel, they tend to be a bit on the heavy side. After a few times of running into the door with their shins, it was time to get this thing fixed.

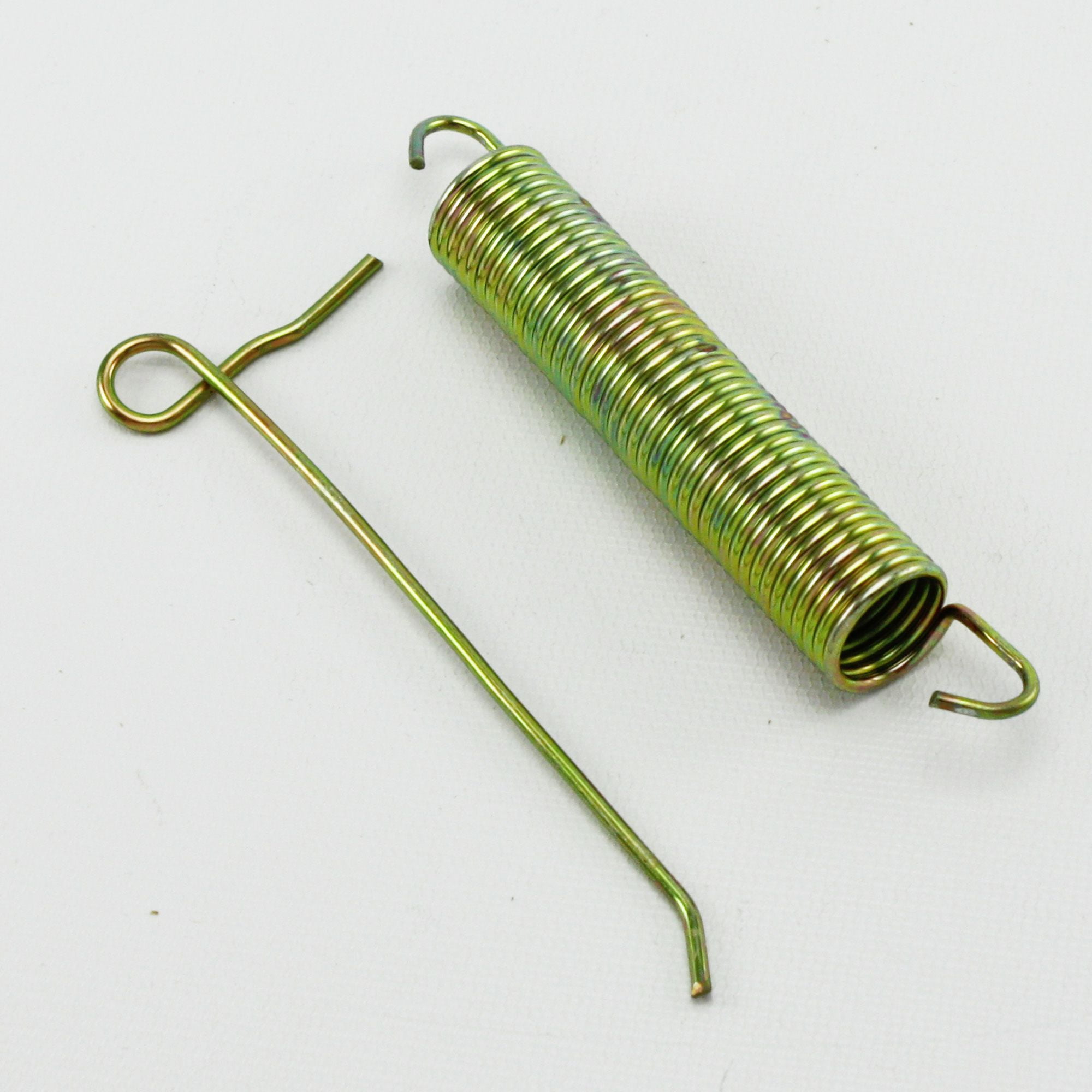

HOW TO REPLACE A DISHWASHER DOOR SPRING INSTALL

As we’ve said, the door springs are located on either side of the dishwasher, close to the bottom and towards the front of the unit.Įxamine the springs and see what the damage is. Check/Remove the Springs and Replace Them If NecessaryĪt this point, you should now have your dishwasher in a position where you can inspect the door springs. The brackets will likely be held in place by screws, so just remove these screws and you should be able to move the dishwasher out of its cubby. Odds are, your dishwasher also has a couple of brackets to keep it in place inside its cubby these will also have to be removed.

This is why it’s important to ensure that your dishwasher is not receiving power otherwise, you risk electrocuting yourself with this step. If these wires don’t have enough slack, however, you’ll have to disconnect them from the junction box before pulling the dishwasher out from its cubby.
